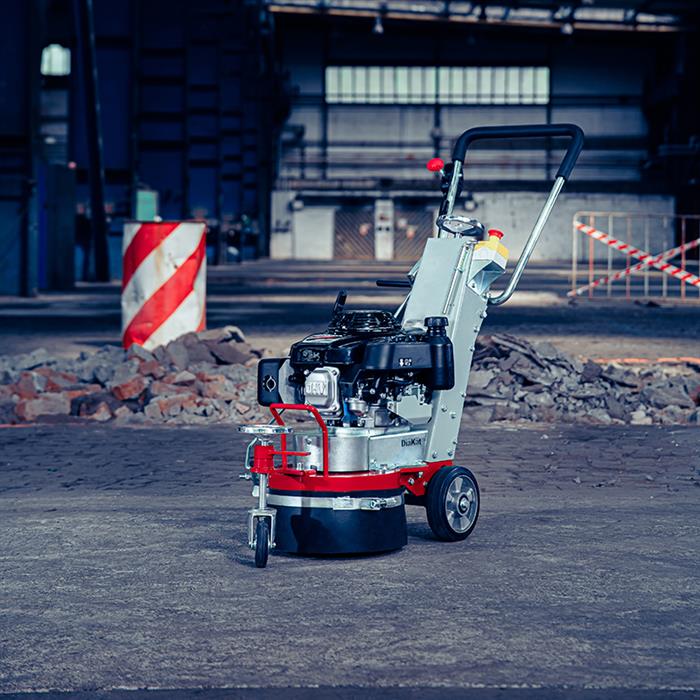

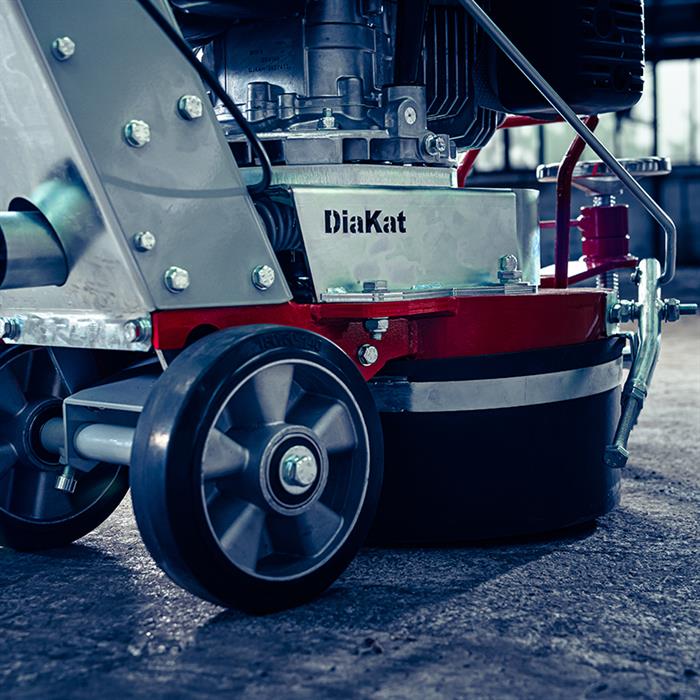

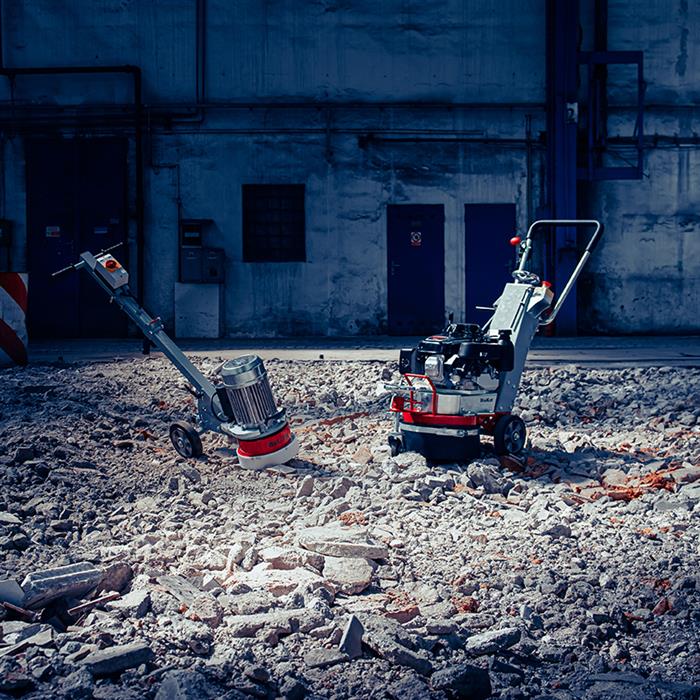

DIAKAT - BL 300 HD Line-removal milling machine with Honda engine
Description
The BL–300 is a single-disc grinder designed for a wide range of applications. nThanks to a wide selection of tools and a simple quick-change system, most horizontal surface marks can be easily removed.nThe grinder offers two tool speed settings. The low speed of 900 rpm is designed for scouring (removing horizontal tire marks).nThe high speed of 1,350 rpm is designed for grinding with diamond tools.nFeatures:

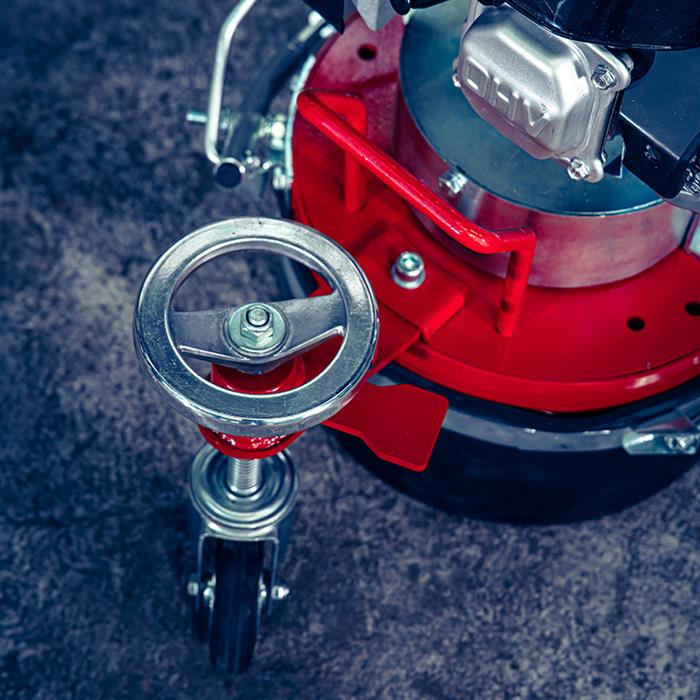

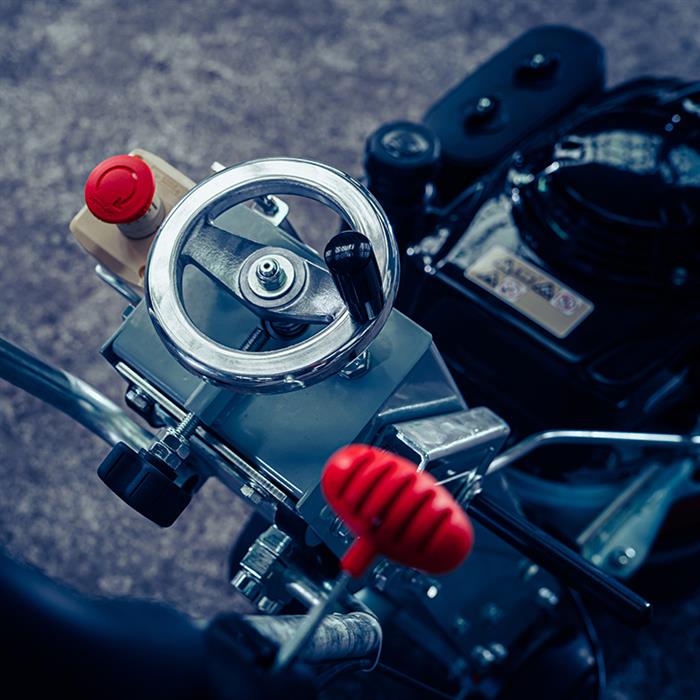

- The simple yet robust design ensures long, trouble-free operationn- High versatility thanks to a wide range of available toolsn- Easy operation and adjustmentn- Easy transport and storage thanks to the transport positionn- Height-adjustable handlebar for greater operating comfort
- Quick-change system for easy replacement of various tools without screwsn- Tool guard with dust extraction to comply with new regulationsn- Flexible tool connection, two different models for diamond and carbide toolsnApplications:
- Milling of concrete and asphalt surfacesn- Removal of tire tracksnTechnical description:nMotor:
Honda GVX 160nPower: n3.2 kWnDimensions: n1260 x 560 x 1020 mmnWeight: n113 kgnEngine speed:
3,600 rpmnSpindle speed: n900 / 1,350 rpmnWorking width: n300 mm
Links, Downloads and Stories! (25)
-
Pdf Docs
- Ficha de produto DIA-600 042 PT.pdf (224 KB)
- Ficha del producto DIA-600 042 ES.pdf (223 KB)
- Fiche produit DIA-600 042 FR.pdf (224 KB)
- Fișa produsului DIA-600 042 RO.pdf (232 KB)
- Karta produktu DIA-600 042 PL.pdf (235 KB)
- List izdelka DIA-600 042 SL.pdf (234 KB)
- Product sheet DIA-600 042 EN.pdf (223 KB)
- Productblad DIA-600 042 NL.pdf (223 KB)
- Produkta lapa DIA-600 042 LV.pdf (231 KB)
- Produktark DIA-600 042 NB.pdf (223 KB)
- Produktblad DIA-600 042 DA.pdf (223 KB)
- Produktblad DIA-600 042 SV.pdf (223 KB)
- Produktblatt DIA-600 042 DE.pdf (224 KB)
- Produkto lapas DIA-600 042 LT.pdf (234 KB)
- Produktový list DIA-600 042 CS.pdf (232 KB)
- Produktový list DIA-600 042 SK.pdf (232 KB)
- Scheda prodotto DIA-600 042 IT.pdf (223 KB)
- Terméklap DIA-600 042 HU.pdf (235 KB)
- Toote leht DIA-600 042 ET.pdf (223 KB)
- tuoteseloste DIA-600 042 FI.pdf (223 KB)
- Ürün sayfası DIA-600 042 TR.pdf (234 KB)
- Φύλλο προϊόντος DIA-600 042 EL.pdf (240 KB)
- Листок з описом продукції DIA-600 042 UK.pdf (227 KB)
- Продуктов лист DIA-600 042 BG.pdf (234 KB)
-
YouTube
- DIAKAT - BL 300
