DIAKAT - FD 200 demarcation tiller with Honda engine
Description
The FD-200 is a compact tiller for small to medium-sized areas.
Its low center of gravity ensures fast, even work. It can be fitted with star cutters or skiving cutters mounted on the shafts. Designed for milling asphalt, concrete, natural stone, floor tiles, screed cement, screeds, paints and similar materials, it brings surfaces to the desired height or removes weathered or superfluous layers.
Features:
- Simple and stepless adjustment of the milling depth
- Locking of the milling depth
- Robust frame
- Damping silent blocks for comfortable working
- Connection for dust extraction
- Easy replacement of all tool types
Areas of application:
- Milling of concrete and asphalt surfaces
- Removal of ruts
Technical description:

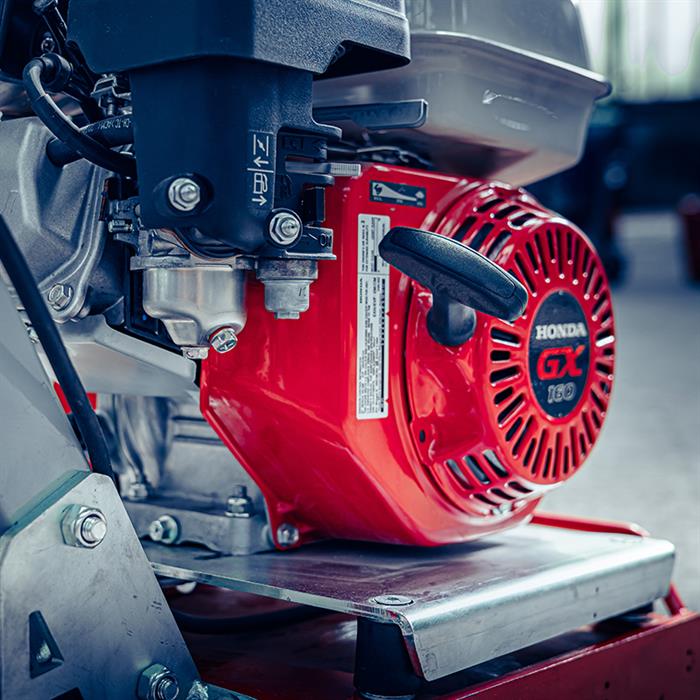

Engine: Honda GX 160
Power: 3.6 kW
Dimensions: 1000 x 955 x 400 mm
Weight 77 kg
Motor speed: 3,600 rpm
Spindle speed: 2,520 rpm
Working width: 200 mm
Maximum cutting depth: 1 - 5 mm
