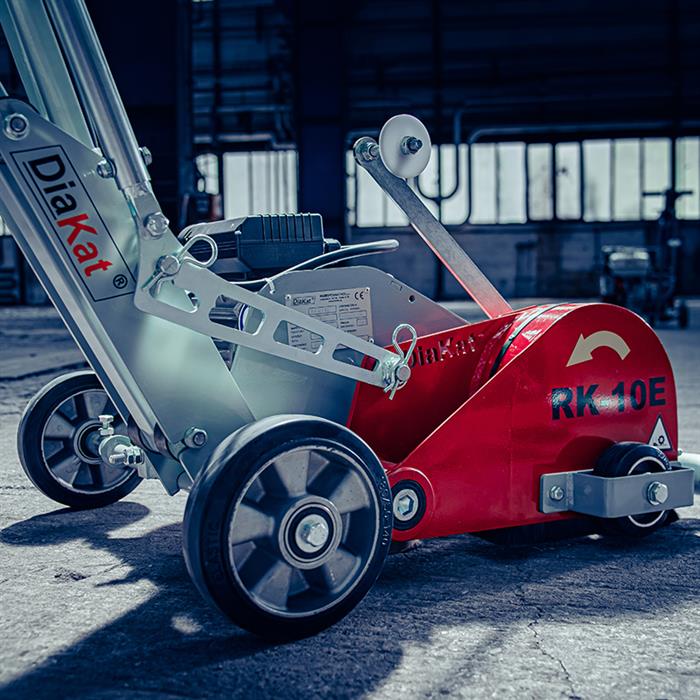

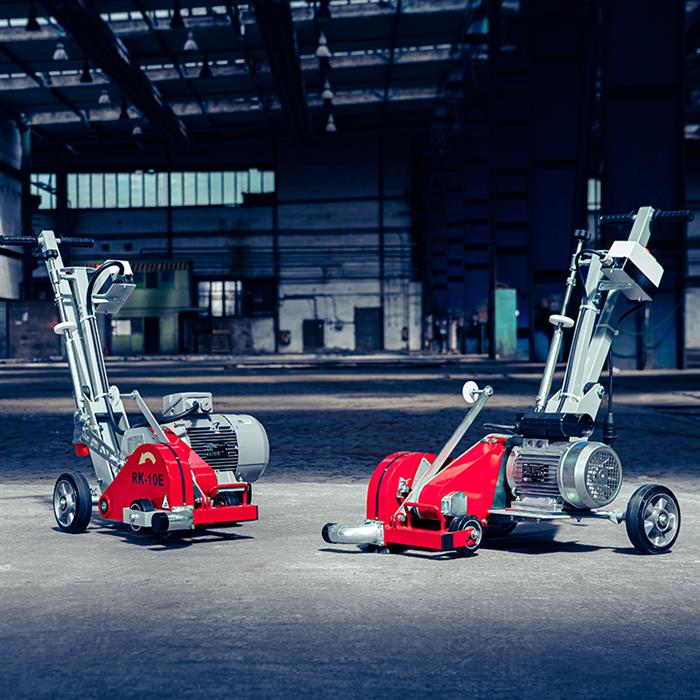

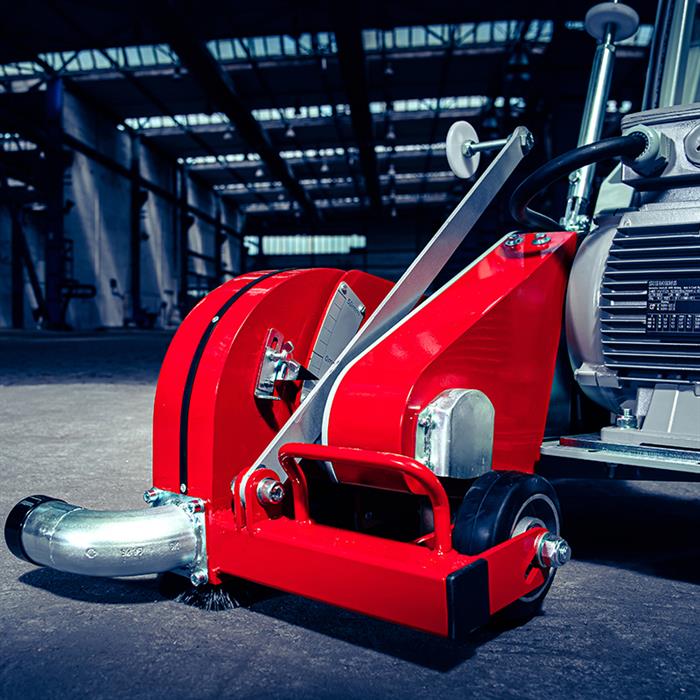

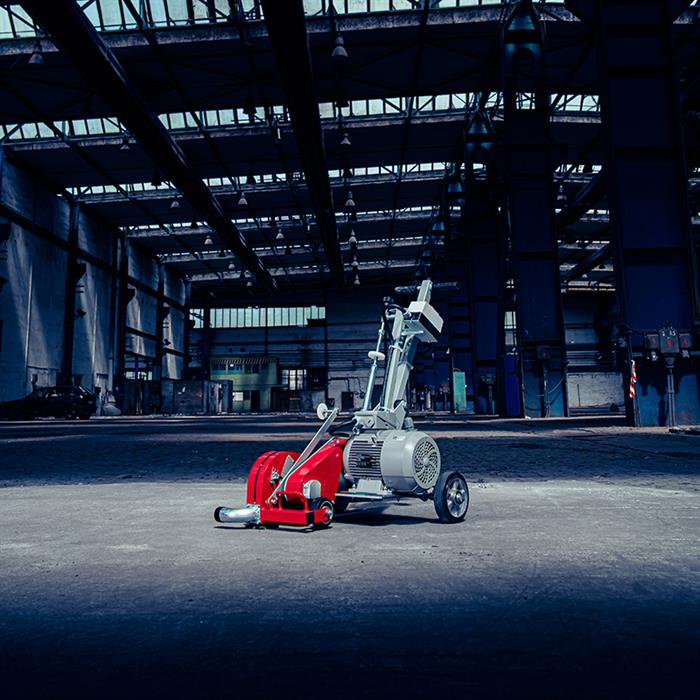

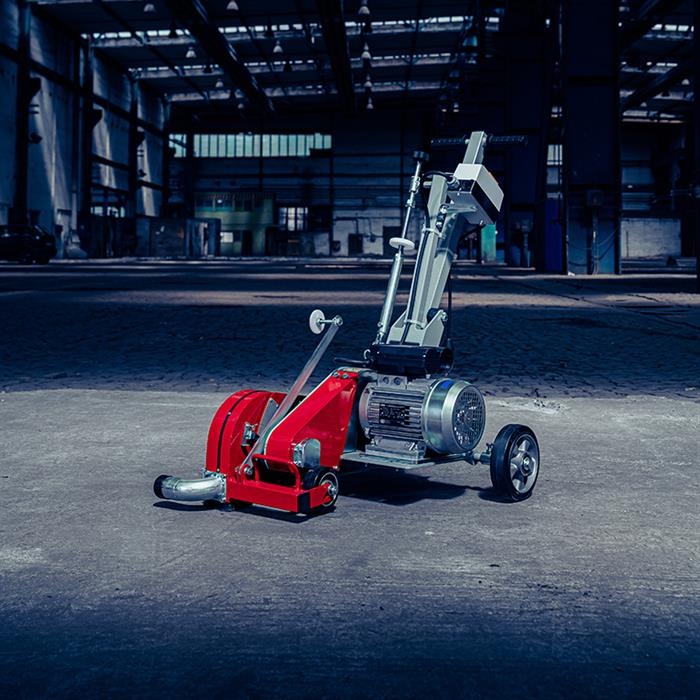

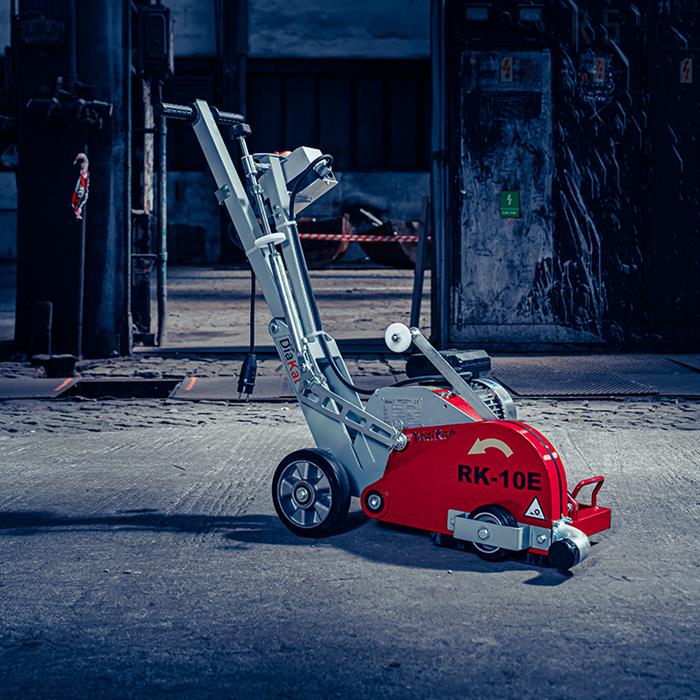

RK-10E Floor saws flush cut / CIMA / 2.2 kW / 230 V Cover: 200 mm - version for flush cut with dust extraction and visor
Description
RK-10E is mainly used by flooring specialists for cutting joints in various surfaces such as concrete, anhydrite, epoxy resin and similar materials.
It can be used to reopen old joints or to apply new joints (expansion joints).
The machine can be used with diamond blades up to 205 mm in diameter. It enables dry and wet cuts up to a depth of 50 mm.
The machine can be used with V-shaped discs for chamfering joints before sealing. The simple connection of the dust extraction hose enables dust-free operation.
Features:
- Compact machine for shallow cuts, used for road repairs
- High performance and efficiency
- Small dimensions and easy handling
- Precise adjustment of the cutting depth
- Dust-free operation
- Sighting device
Technical description:
Design: for flush cutting
Motor: CIMA electric motor
Power: 2.2 kW
Dimensions: 970 x 630 x 970 mm
Weight 67 kg
Motor speed: 2,750 rpm
Spindle speed: 3,485 rpm
Maximum diameter of cutting tool: 205 mm
Maximum cutting depth: 50 mm
