CMC U9 - Road Marking Machine with Various Configuration Options

CMC U9 - Road Marking Machine with Various Configuration Options

Item number: CMC-U9-AR180
Available in: AT, DE, CH, EU, on request
Weight: 825 kg
Size: 220 x 90 x 185 cm
NumberPc.
Package: Stk. (1Pc.)
Remember
Request for this article ›

Description

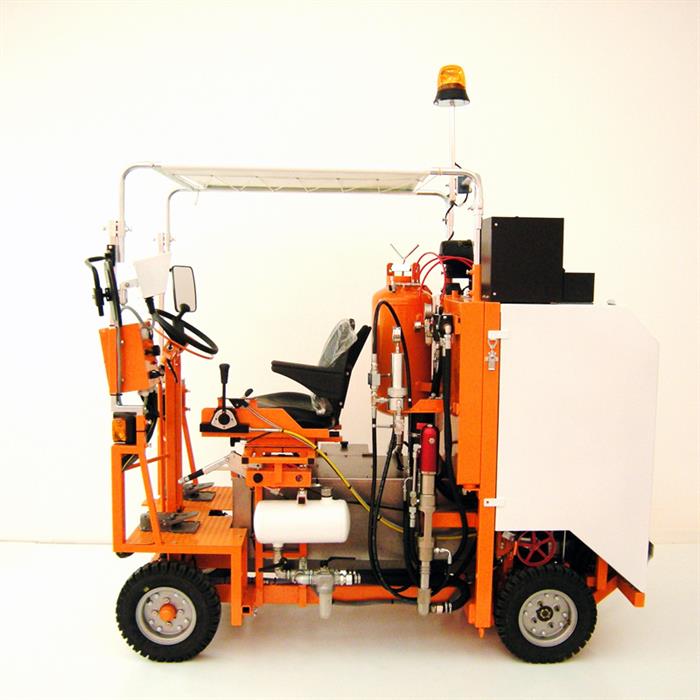

Self-propelled ride-on airless machine for jobs that require a large paint capacity, high marking performance, and stability in a compact 4-wheel ride-on machine. The self-propelled ride-on marking machine with hydraulic drive can be customized.

Thanks to its compact design, this maneuverable road marking machine is the ideal solution for any (even extensive) marking jobs in urban areas.

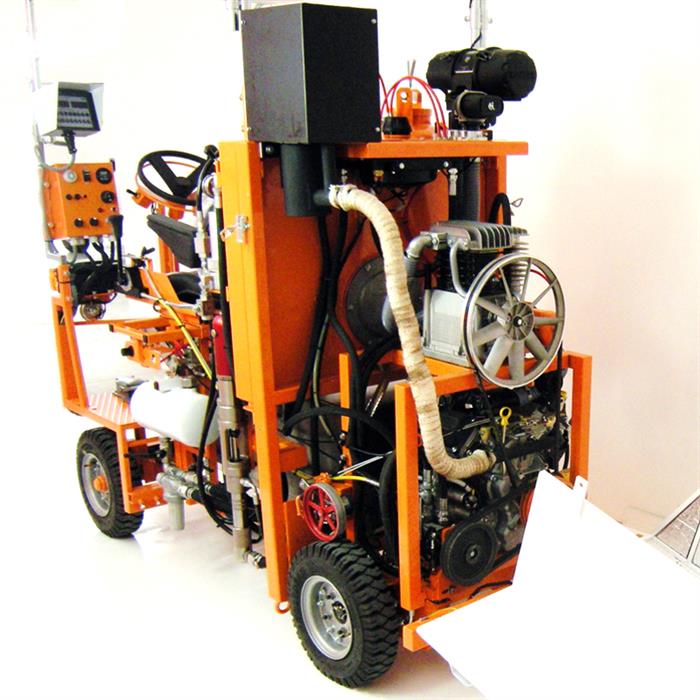

Gasoline engine:
- External generator for charging the battery
- Centrifugal disc

Headlights, turn signals, and rotating beacon

Hydraulic drive with:
- 2 motors directly coupled to the rear wheels
- Joystick: control for forward, reverse, and neutral
- Pump with variable flow rate

Hydraulic oil cooler

Line/gap control unit:
- C9000 with pump stroke measurement or

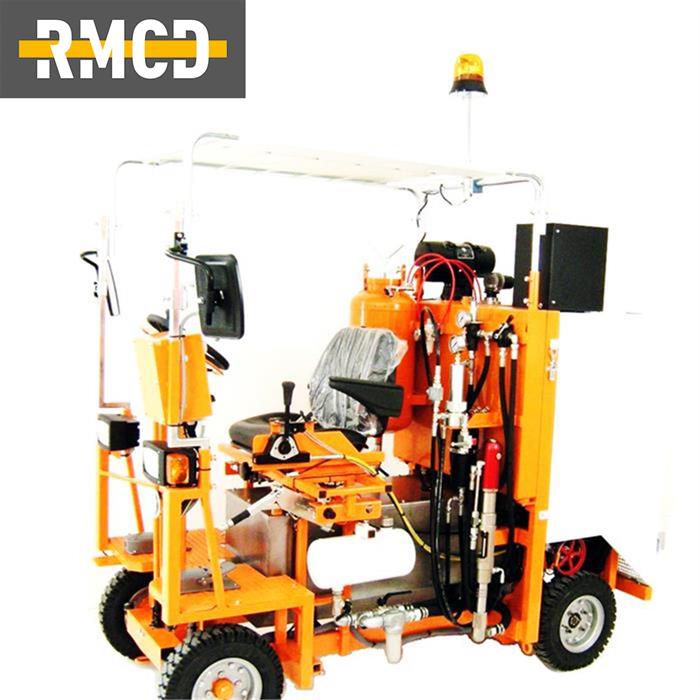

RMCD - Road Marking Control Device
Probably the easiest-to-use system for road marking!
With a high-resolution color display and the unique RMCD-Drive!

Check out our YouTube videos and the link to the RMCD website.

2 parking brakes:
on the front wheels

Steering:
on the front wheels

Turning radius:
6.7 m

Telescopic sight
for easy pre-marking or precise re-marking of existing lines.

Automatic engine shut-off
if the driver stands up without applying the parking brake.

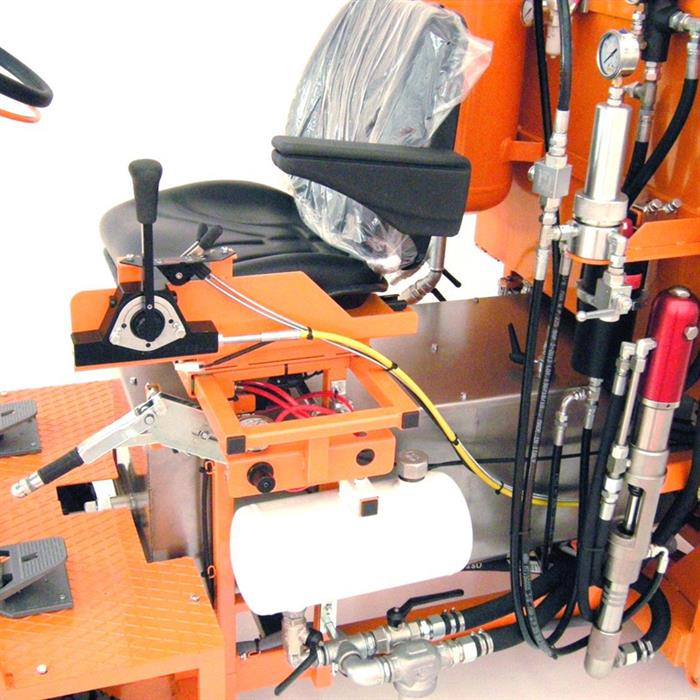

Seat
with adjustable position (left/right, forward/backward)

Sun canopy

Paint tank:
- Capacity 150 l
- Made of stainless steel
- With manual agitator

Solvent tank:
for flushing the spray guns and paint hoses

Pressure tank for glass beads:,
- Capacity 35 l
- With pressure regulator and moisture separator

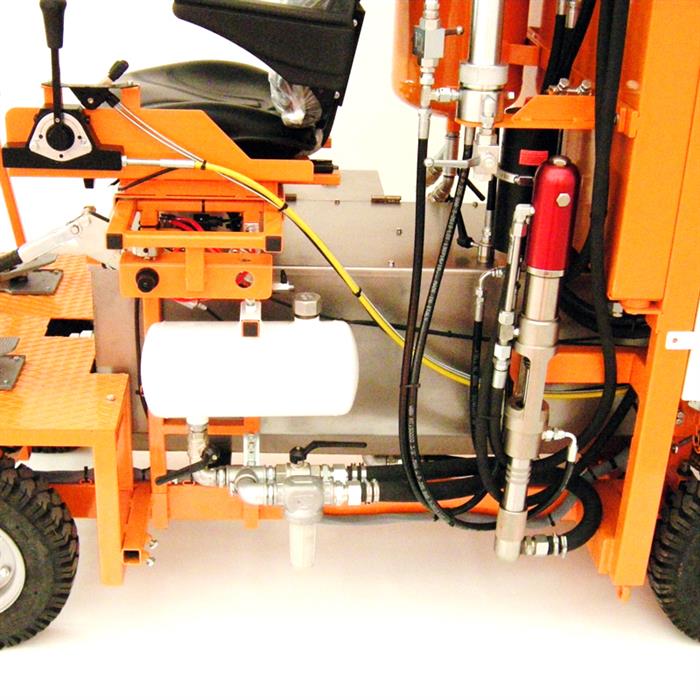

Airless hydraulic piston pump:
- Max. volumetric flow rate 8.9 l/min

Twin-cylinder compressor:
- Flow rate 515 l/min
- With pressure relief valve

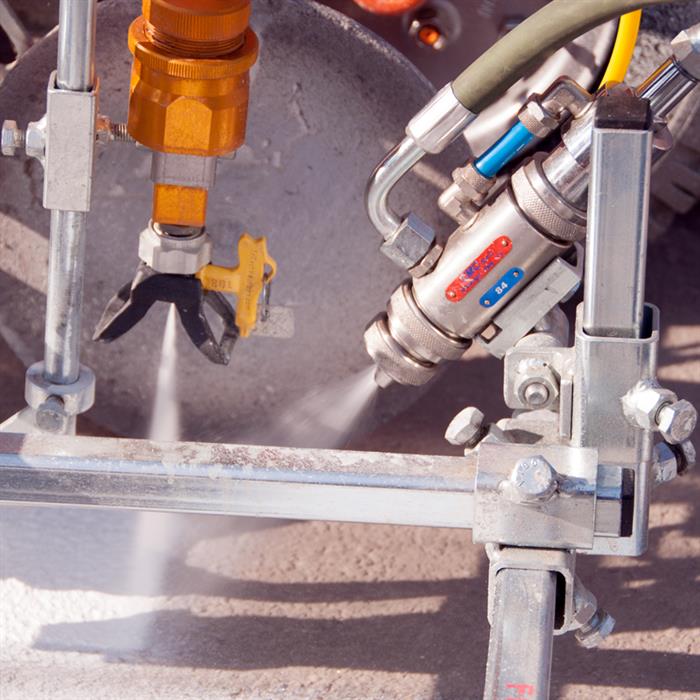

Automatic spray gun:
Mounted on a rigid L-bracket (height-adjustable). Standard nozzle for 10–20 cm lines. Line width can be adjusted from 10 cm to 30 cm by changing the nozzle and/or adjusting the spray gun height.

High-pressure paint filter

Automatic glass bead gun:
Diffuser with adjustable tilt and spray angles. Shut-off delay controller for bead gun

MAX. LINE WIDTH:
90 cm (Possible only with appropriate accessories)

C8000 Electronic Stroke/Gap Controller featuring:
- Ability to select 8 different presets
- Recording options: Total counter (marked line + unmarked gap); total meters of marked line
- soundSpeedAlarm: Sounds when the speed falls below the minimum or exceeds the maximum. Minimum and maximum speeds are adjustable. (To ensure a uniform layer thickness of the marking material).
- Allows control of up to 3 guns (if the machine is equipped with 3 guns)
