RMCD - Airless nozzle for road markings/surface markings - 421
Description

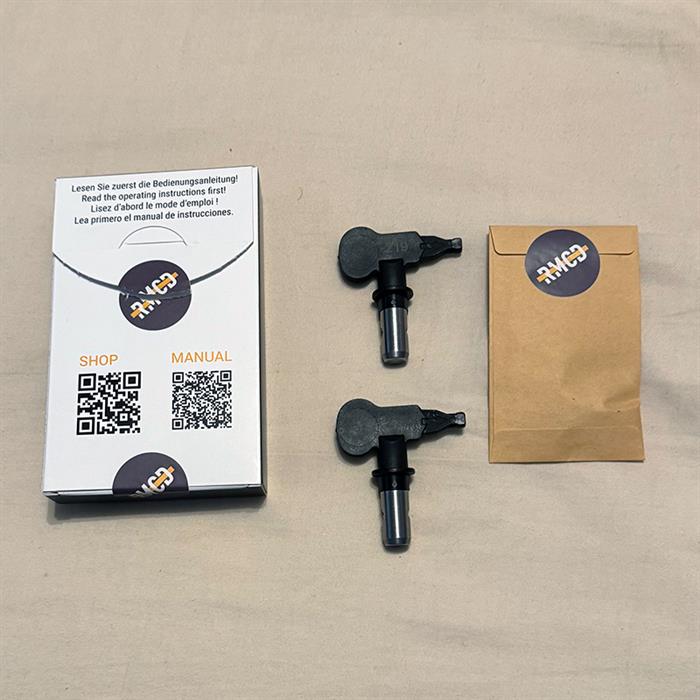

2 airless nozzles for line markings including seals.
The airless reversible nozzles have been specially developed for surface markings on roads, parking lots, airports, sports fields and industrial halls. The special design of the nozzle enables optimum results in surface marking.
Size: 421
Spray angle: 40 degrees
Color: black Black
Bore: 0.021 inch
Made in EUROPE!
Installation instructions:
Only use an intact nozzle guard! Make sure that the steel seal with plastic ring is properly installed.
Never reach into the spray jet. This can lead to serious injuries. The nozzle guard has no safety function in this respect.
Only change the nozzle when the paint system is depressurized.
Secure the gun with the trigger guard when not in use.
Do not exceed the working pressure specified on the packaging.
Installation:
- Install the steel seal with the plastic ring in the nozzle holder (use the pointed side of the airless nozzle to position it correctly)
- Insert the nozzle into the nozzle holder
- Screw the nozzle holder onto your paint gun and tighten the screw firmly
Cleaning:
- If you place your airless nozzle with the nozzle holder in cleaning thinner, check that the seal is still inserted in the nozzle holder when removing and installing it on the paint spray gun.
- Use gloves for this process. Cleaning thinner is harmful to your health.
Packaging:
- In smart cardboard packaging. Can also be opened and closed with gloves.
- The seals are packed separately in a paper bag.
- No more blister packaging, which is difficult to open on the construction site.
