Pipe protection 360°, hot-dip galvanized

Description

Pipe guard 360°, 2-part, screwable, pipe bend 48 mm, legs 33.7 mm, hot-dip galvanized, with base plates for dowelling Height: 600 mm Outer diameter: 350 mm Inner diameter: 250 mm

• The MORION pipe guard 360° offers perfect all-round protection against collision damage for free-standing pipes and poles. High-quality, two-part tubular steel construction made from 48 pipe bends.

  Easy installation: The pipe bends are pushed into each other and bolted together. The fixed unit connected in this way is dowelled in place using 4 base plates.

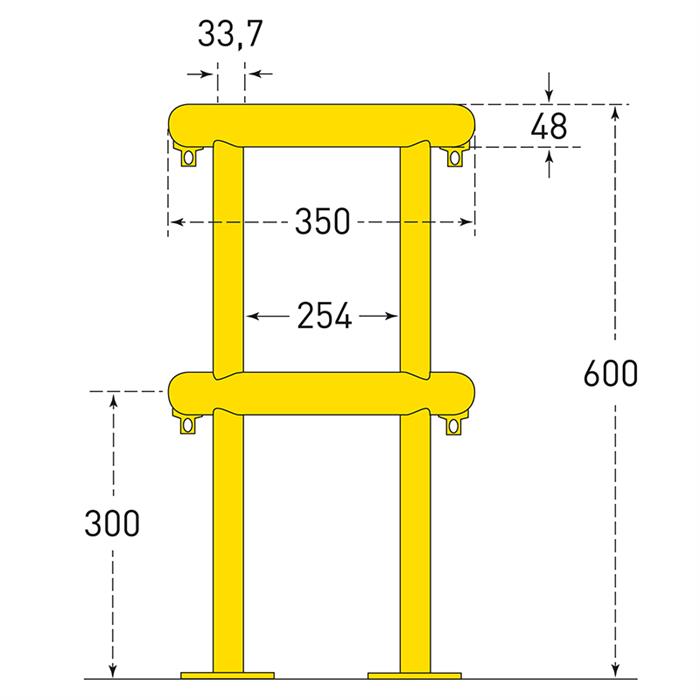

  Dimensions:

  • Height: 600 mm
  • Ø outside: 350 mm
  • Ø inside: 254 mm
  • Ø tube bend: 48 mm
  • Wall thickness: 2 mm
  • Standing legs: Ø 33.7 x 2 mm
  • Base plates: 115 x 32 x 5 mm
