Black Bull impact protection barrier
Item number: MOR-202.24.284
Weight:
12,5
kg
Remember
Description

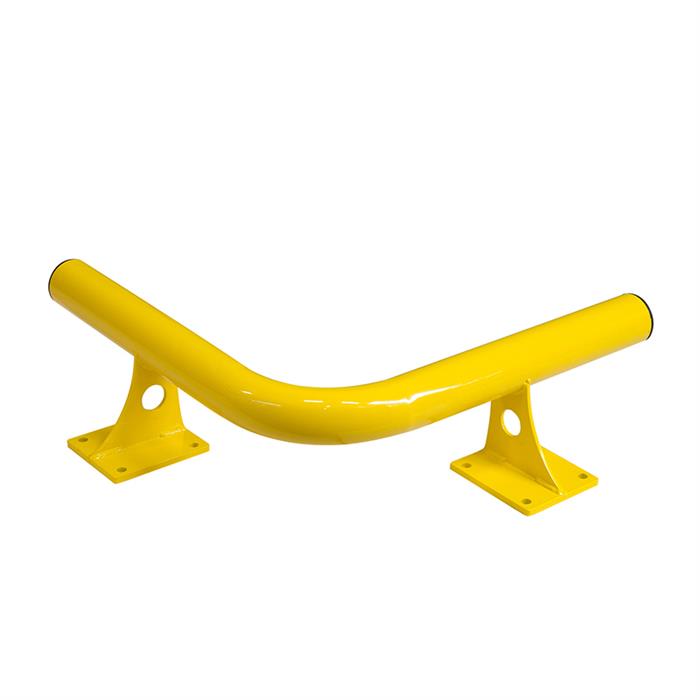

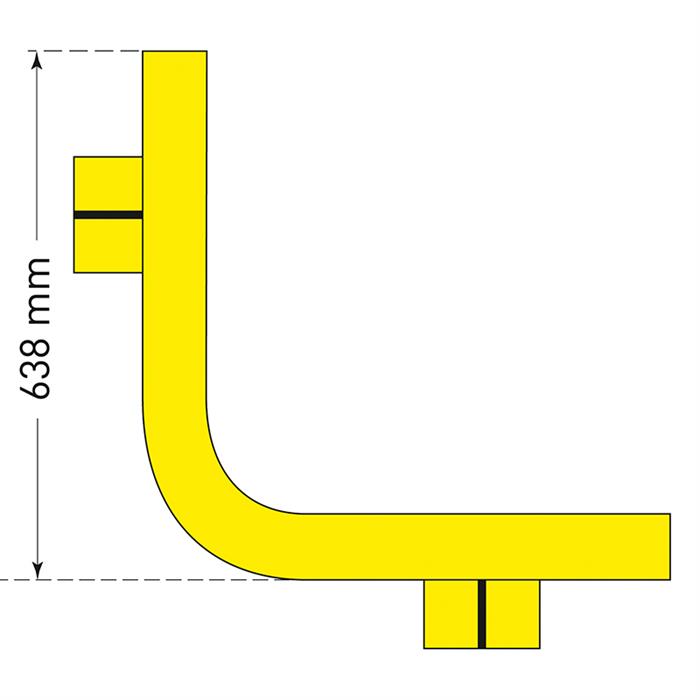

BLACK BULL impact protection barrier, INNER CORNER, round tube 76/3.0 mm, side lengths 638/638 mm, yellow plastic-coated, with 2 base plates, for dowelling

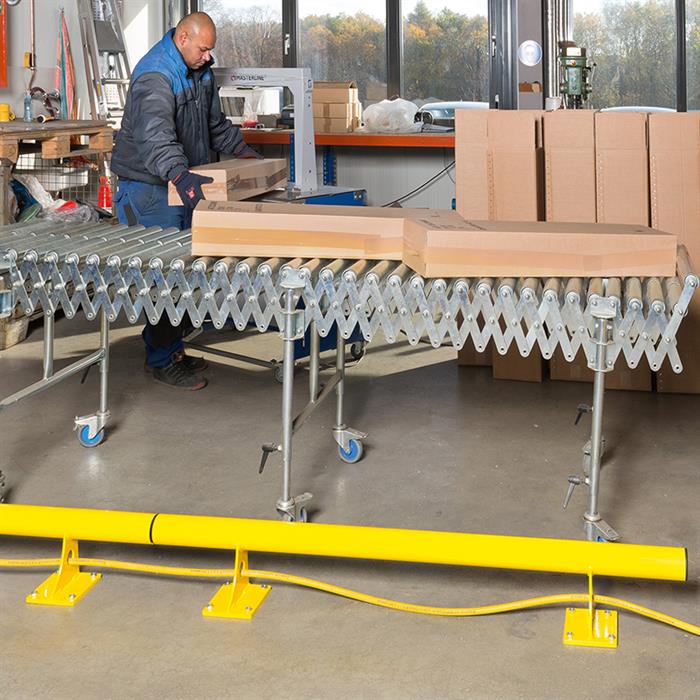

The BLACK BULL impact protection barrier is a newly developed steel guidance system for separating traffic routes, protecting machinery, technical equipment, work areas and walkways.
Very robust construction: The thick-walled steel tube is connected to a solid base plate by metal bars. Black plastic caps on the sides.
Additional cable routing: Protects cables, pressure hoses and lines up to 48 mm, which can be routed through the recesses in the bars.
- Surface treatment: yellow plastic-coated
- Design: 76 mm Ø, 3 mm wall thickness
- Total height: 200 mm
- Base plate: 160 x 140 x 10 mm. The impact protection barriers are dowelled in place.
- Special lengths are available on request.
Also available as flexible SWING version: yields up to 10° inclination.
Note: Do not connect the corner barrier in SWING version with the straight barriers.
Internal corner.
