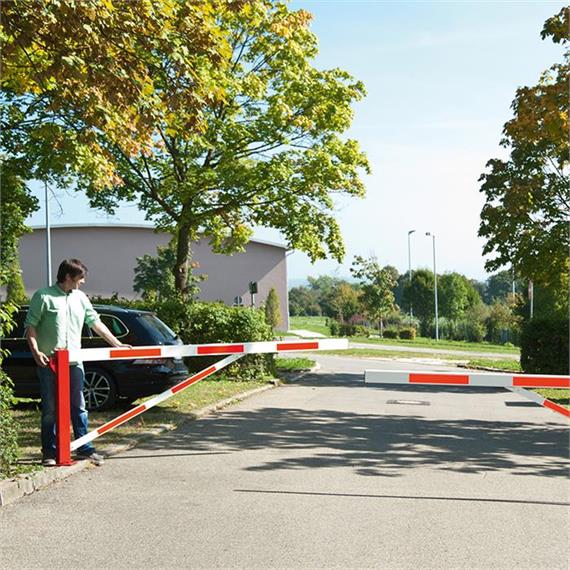

COMPACT gate barrier, double-sided

Description

COMPACT gate barrier, double-sided, galvanized and red-white coated, red reflective strips and anti-sit strip, with round cylinder, for dowelling, total barrier width: 2,000 mm = 2 wings of 1,250 mm each.

• The COMPACT gate barrier is a newly designed, modern, horizontally rotating barrier with two wings without support posts.

  Comprehensive features of the COMPACT gate barrier:

  • Robust steel pivot posts and cross strut, galvanized and powder-coated red.
  • Wide aluminum beam (90 x 60 mm) for good visibility with integrated anti-sit bar.
  • White coated with red reflective strips.
  • The new additional aluminum cross brace (60 x 30 mm) increases stability.
  • For dowelling - can be set in concrete on request.
  • The rotating wing automatically engages every 90°.

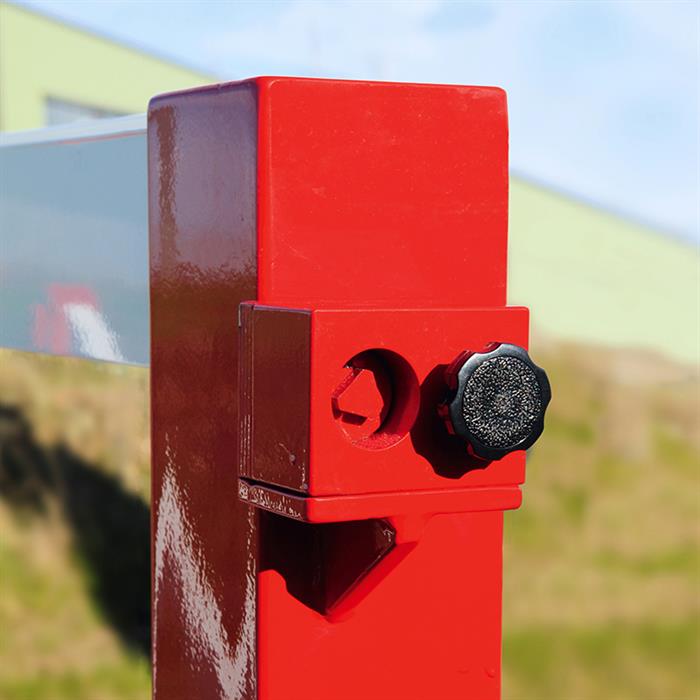

  • Lockable with multi-locking round cylinder, including 2 keys.
  Other locking options:

  • Triangular lock instead of round cylinder
  • Circular cylinder keyed alike
  • Prepared for customer profile cylinder
  • Double locking: triangular lock and profile cylinder

  Dimensions:

  • Pivot post: 100 x 100 x 1.000 mm

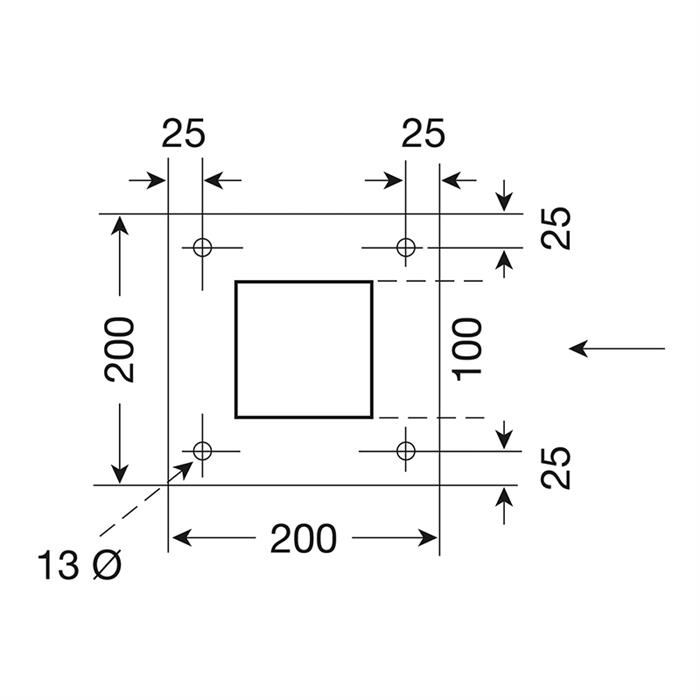

  • Base plate: 200 x 200 x 10 mm
  • Alu beam: 90 x 60 mm
  • Alu cross strut: 90 x 30 mm
  • Maximum length: 3,250 mm per leaf
