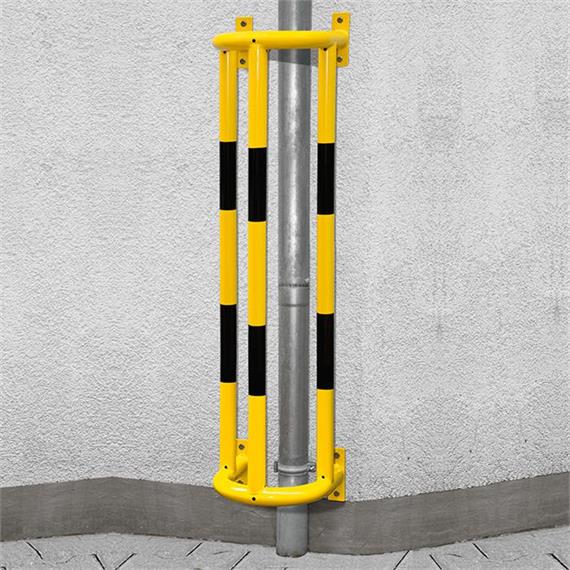

MORION pipe protection, large, wall mounting

Description

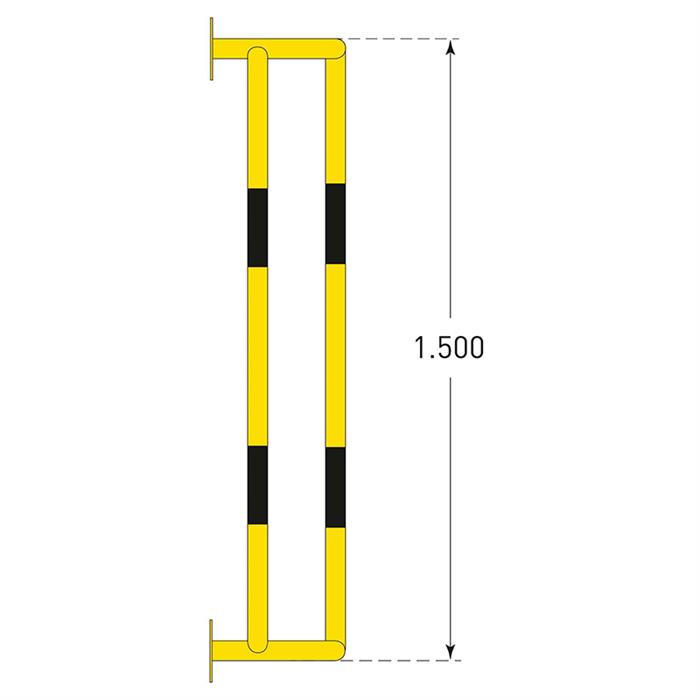

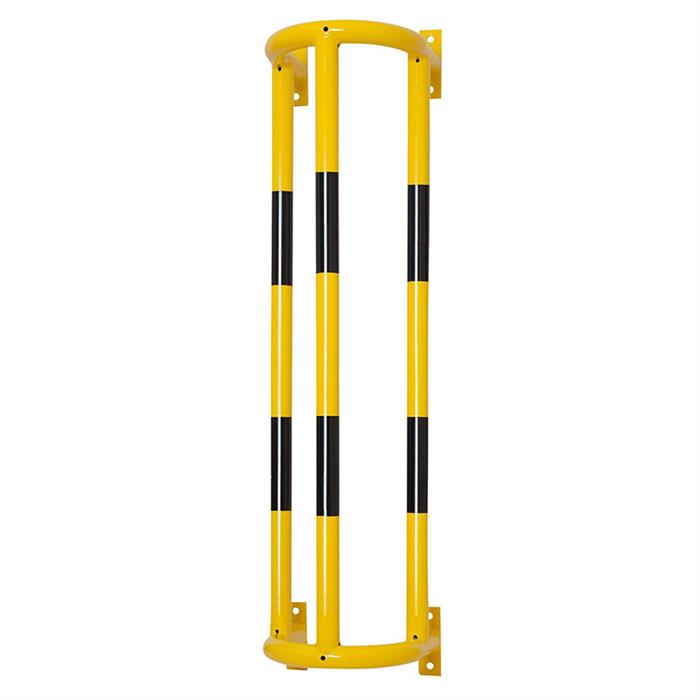

MORION pipe guard large 1500, for wall mounting, steel tube 48 mm, 1500/350/300 mm, hot-dip galvanized, yellow coated, black stripes, with wall plates: 150/50/5 mm

• The MORION pipe guard 180° (large) protects (drop) pipes, cables, cable ducts etc. against collision damage.
  Grade steel bracket in semicircular shape. For doweling on and off using two base plates and two wall plates (150 x 50 x 5 mm).

  Features of the MORION pipe guard 180°, large

  • Pipe: 48 mm diameter, 2 mm wall thickness
  • Base/wall plate: 150 x 50 x 5 mm
  • Width: 350 mm
  • Internal dimensions: 250 x 275 mm (W x D)
  • Surface treatment: hot-dip galvanized and yellow coated with black stripes

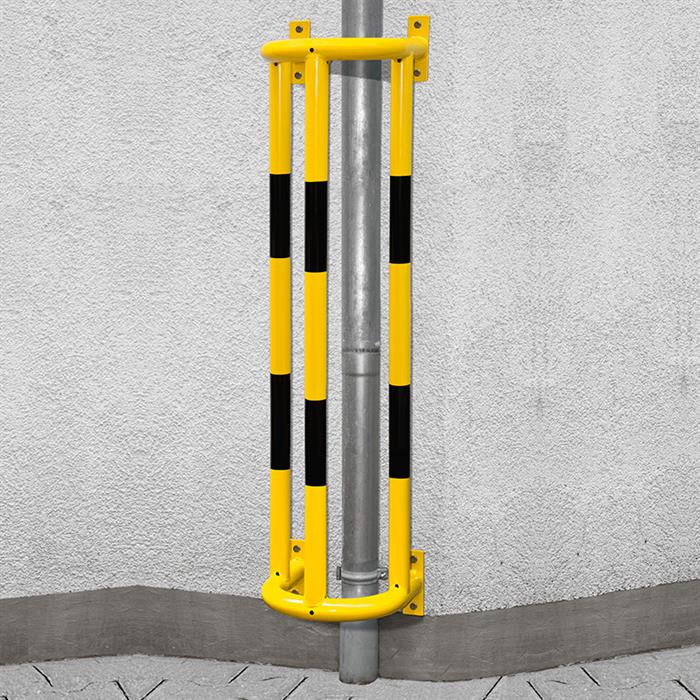

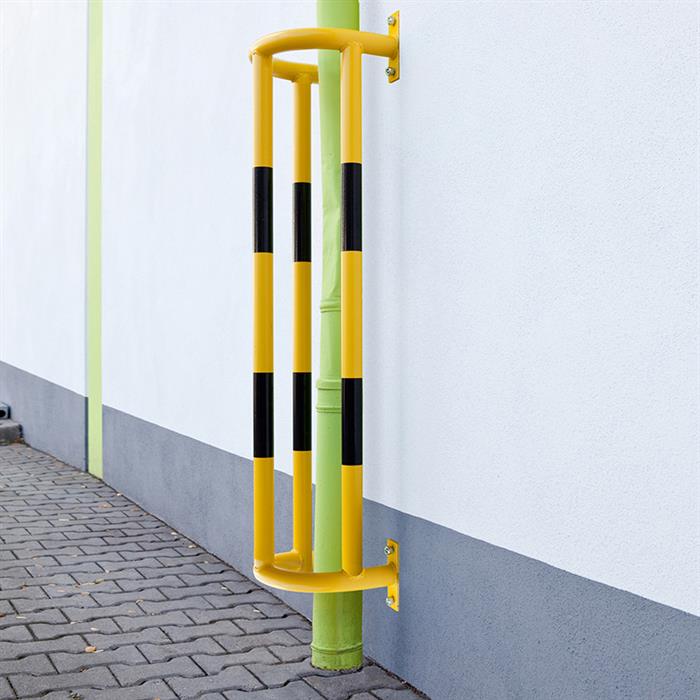

  Design for wall mounting:

  Fixed using four wall plates.
  This allows the pipe guard to be mounted at any height.
  Otherwise identical to the large pipe guard.

  Accessories required: Universal plugs with screw (8 per pipe guard)
