COMPACT turnstile

Description

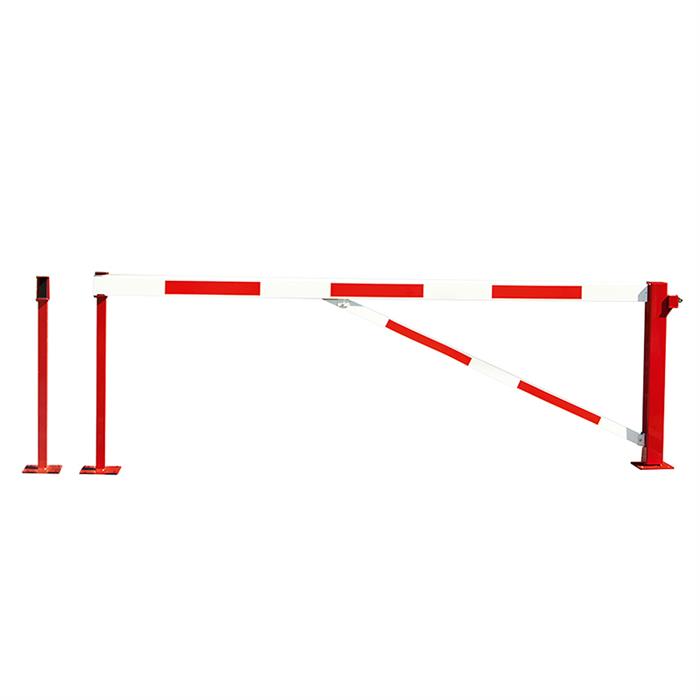

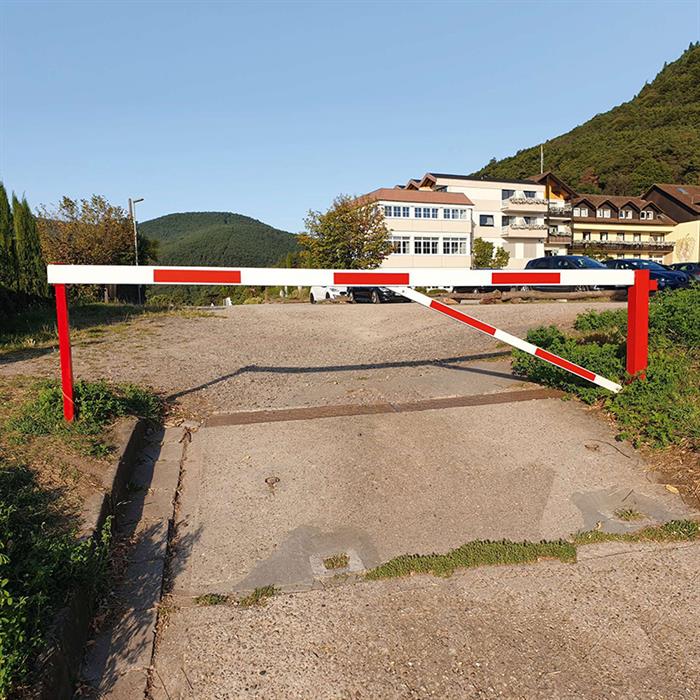

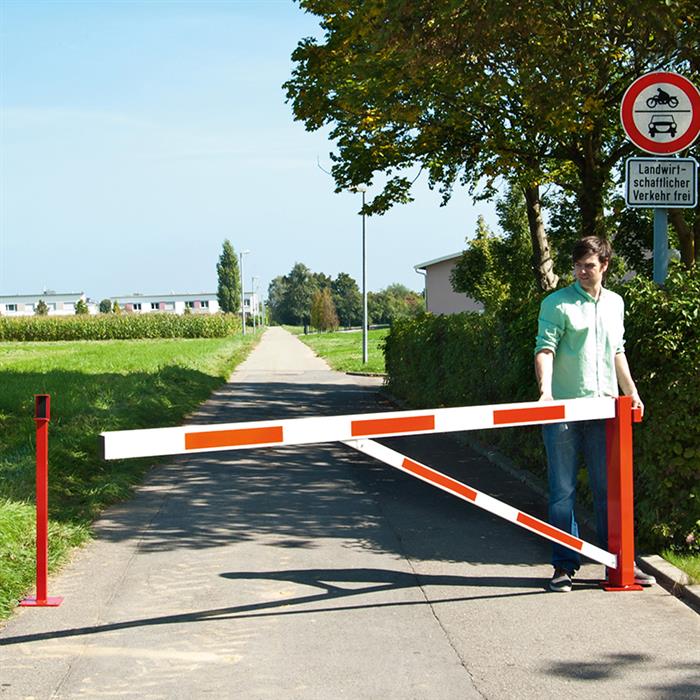

COMPACT swing barrier, horizontally pivoting, galvanized and red-white coated, round cylinder, for dowelling, total length 4500 mm Clear width 4205 mm

• The COMPACT swing barrier belongs to the new generation of horizontally pivoting barriers. Modern and visually appealing.

  Easy-to-operate barrier with two support posts for optimum protection in closed and open position.

  The barrier boom engages automatically every 90°

  Comprehensive features of the COMPACT turnstile:

  • Turnstile and two support posts made of steel, galvanized and powder-coated red
  • Extra-wide aluminium boom (90 x 60 mm) with anti-seat strip
  • White coating, with red reflective strips for good visibility.
  • The new additional aluminum cross brace (60 x 30 mm) increases stability.
  • Swivel post: 100 x 100 x 1,000 mm
  • Base plate: 200 x 200 x 10 mm

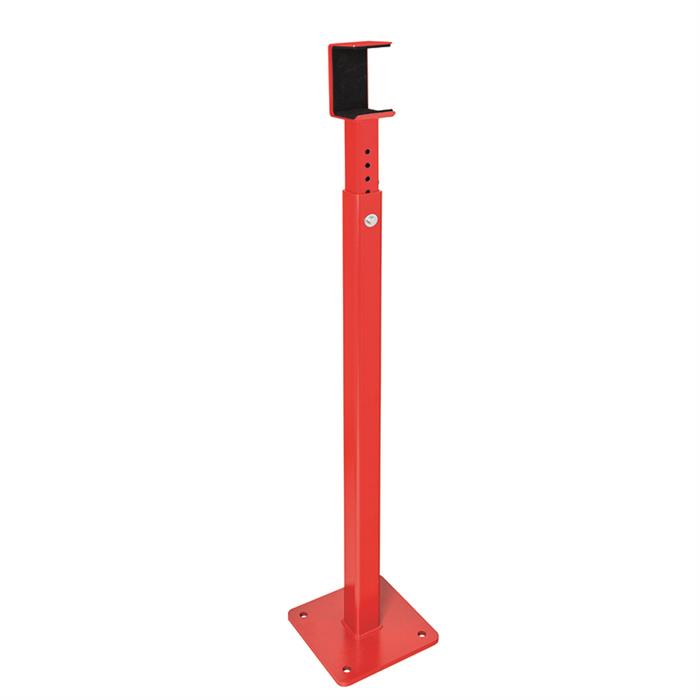

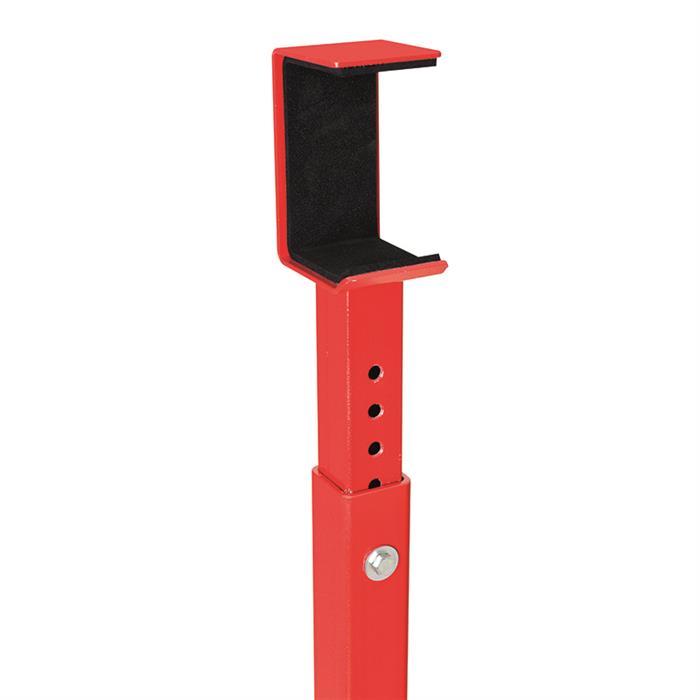

  • Support post: 50 x 50 x 1,000 mm
  • Including cylinder lock
  • For dowelling
  • Option: For setting in concrete. Please order three swivel and support posts for setting in concrete (see accessories).

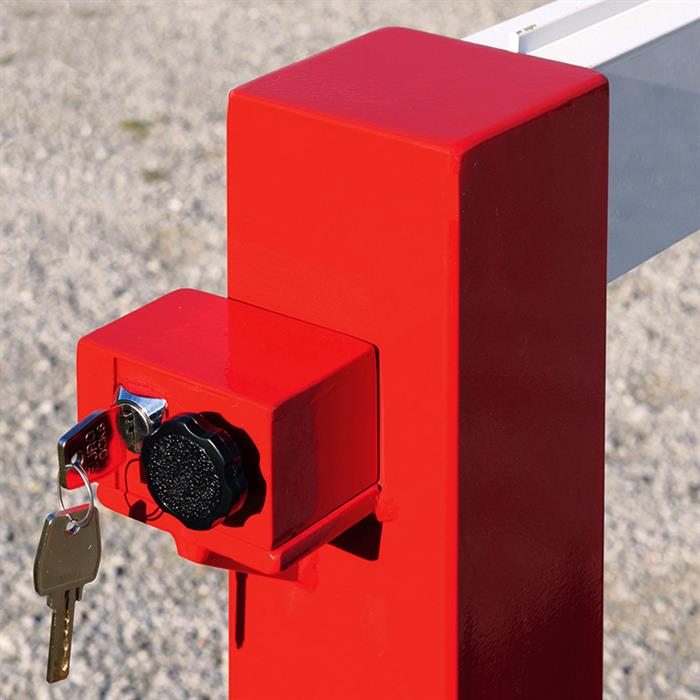

  Locking device of the turnstile:


  Lockable with different locking round cylinders.

  Alternatively available:

  • with triangular lock
  • with keyed alike round cylinder
  • Double locking: triangular lock and profile cylinder
